The perfect transmission of sound through a barrier is difficult to achieve, if not impossible based on our existing knowledge. This is also true with other energy forms such as light and heat.

A research team led by President of the University of Hong Kong (HKU) and Professor Xiang Zhang, when he was a professor at the University of California, Berkeley (UC Berkeley), has, for the first time, experimentally proved a century old quantum theory that relativistic particles can pass through a barrier with 100% transmission. The research findings have been published in Science and a summary also appears on the University of Hong Kong website.

Related article: Researchers Use Light, Sound Waves to Power Telecom Data Chips

Just as it would be difficult for us to jump over a thick high wall without enough energy accumulated, in contrast, it is predicted that a microscopic particle in the quantum world can pass through a barrier well beyond its energy regardless of the height or width of the barrier, as if it is “transparent.”

The perfect transmission of sound through a barrier is difficult to achieve, if not impossible based on existing knowledge. This is also true with other energy forms such as light and heat.

As early as 1929, theoretical physicist Oscar Klein proposed that a relativistic particle can penetrate a potential barrier with 100% transmission upon normal incidence on the barrier. Scientists called this exotic and counterintuitive phenomenon the “Klein tunneling” theory. In the following 100-odd years, scientists tried various approaches to experimentally test Klein tunneling, but the attempts were unsuccessful and direct experimental evidence is still lacking.

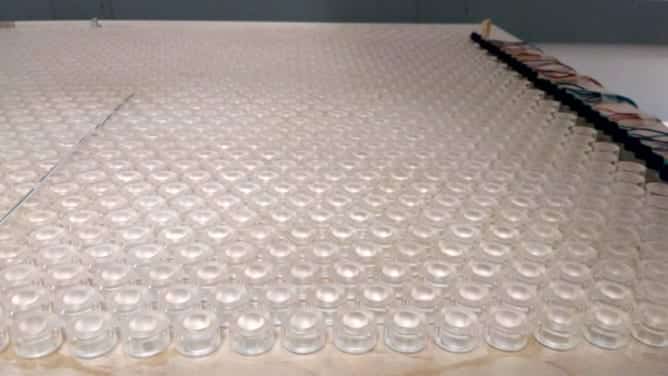

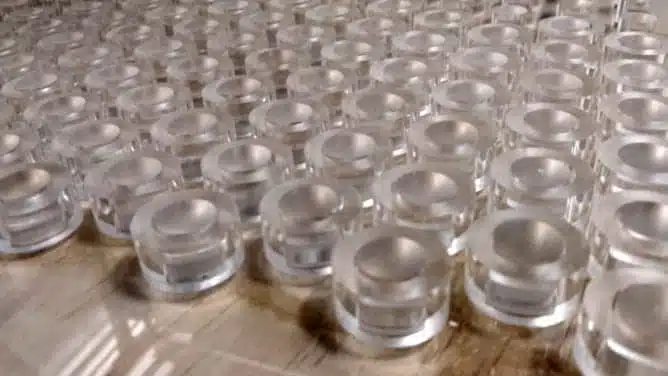

Zhang’s team conducted the experiment in artificially designed phononic crystals with triangular lattice. The lattice’s linear dispersion properties make it possible to mimic the relativistic Dirac quasiparticle by sound excitation, which led to the successful experimental observation of Klein tunneling.

“This is an exciting discovery. Quantum physicists have always tried to observe Klein tunneling in elementary particle experiments, but it is a very difficult task,” said Zhang. “We designed a phononic crystal similar to graphene that can excite the relativistic quasiparticles, but unlike natural material of graphene, the geometry of the man-made phononic crystal can be adjusted freely to precisely achieve the ideal conditions that made it possible to the first direct observation of Klein tunneling.”

The achievement not only represents a breakthrough in fundamental physics, but also presents a new platform for exploring emerging macroscale systems to be used in applications such as on-chip logic devices for sound manipulation, acoustic signal processing, and sound energy harvesting.

“In current acoustic communications, the transmission loss of acoustic energy on the interface is unavoidable,” said Dr Xue Jiang, a former member of Zhang’s team and currently an associate researcher at the Department of Electronic Engineering at Fudan University. “If the transmittance on the interface can be increased to nearly 100%, the efficiency of acoustic communications can be greatly improved, thus opening up cutting-edge applications. This is especially important when the surface or the interface play a role in hindering the accuracy acoustic detection such as underwater exploration. The experimental measurement is also conducive to the future development of studying quasiparticles with topological property in phononic crystals which might be difficult to perform in other systems.”

Jiang pointed out that the research findings might also benefit biomedical devices. It may help to improve the accuracy of ultrasound penetration through obstacles and help reach designated targets such as tissues or organs, which could improve the ultrasound precision for better diagnosis and treatment.

On the basis of the current experiments, researchers can control the mass and dispersion of the quasiparticle by exciting the phononic crystals with different frequencies, thus achieving flexible experimental configuration and on/off control of Klein tunneling. This approach can be extended to other artificial structure for the study of optics and thermotics. It allows the unprecedent control of quasiparticle or wavefront, and contributes to the exploration on other complex quantum physical phenomena.

Original Paper: Jiang X, Shi C, Li Z, et al. Direct observation of Klein tunneling in phononic crystals. Science. 2020;370(6523):1447-1450.

Source: University of Hong Kong, Science

Images: University of Hong Kong
